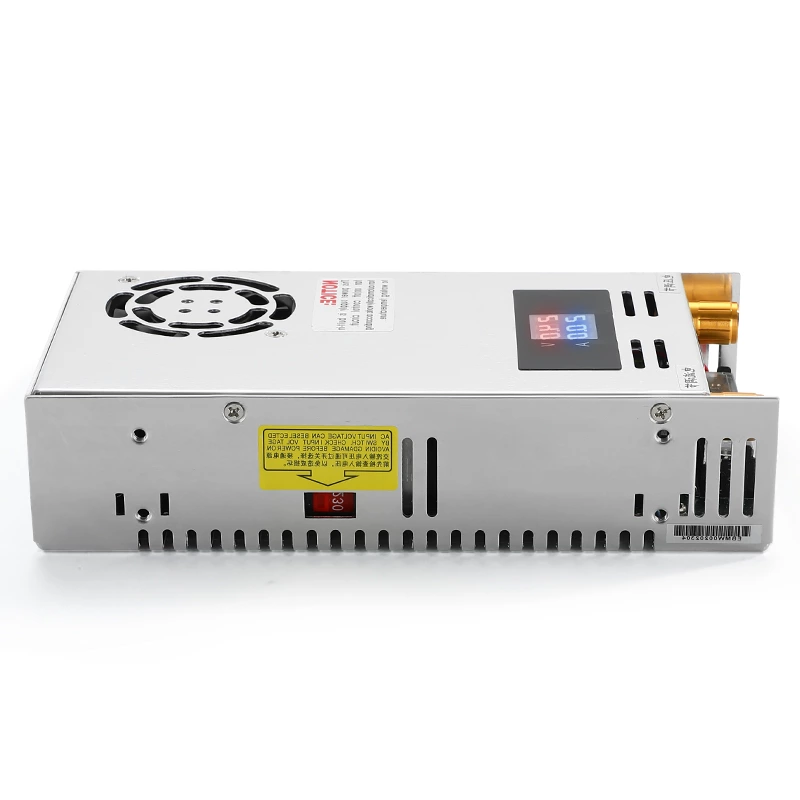

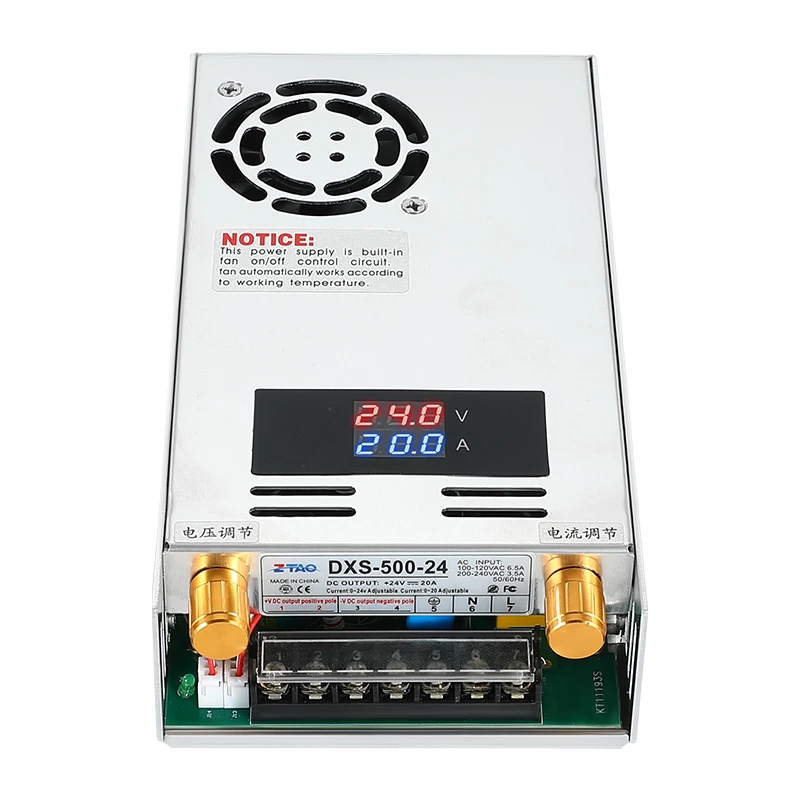

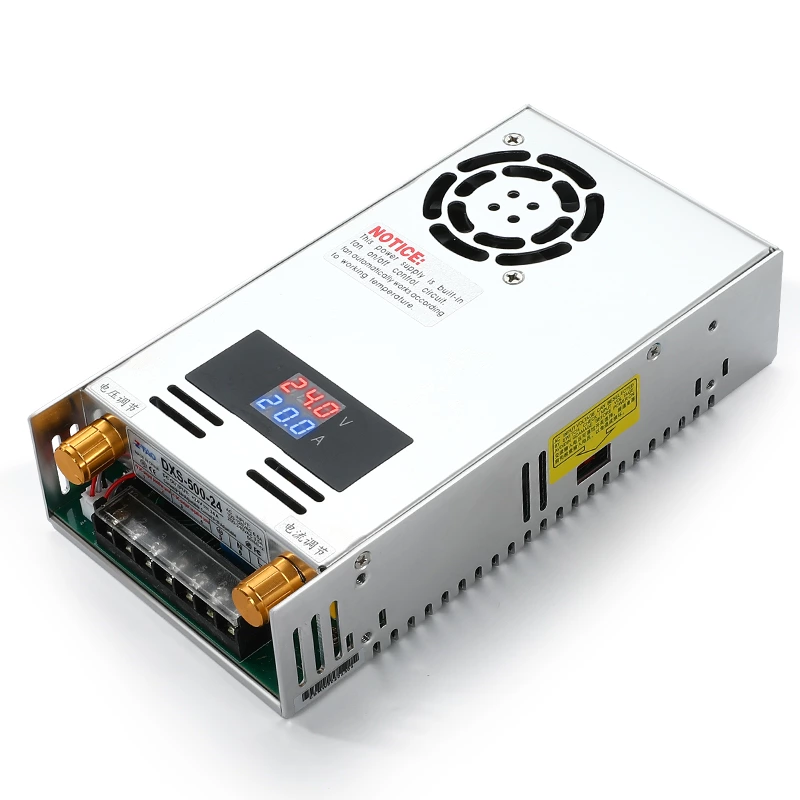

Digital Display Switching Power Supply

DXS-500-24 24V Adjustable Voltage and current 12V 48V 500W Stabilization Digital Dc Power Supply

MODEL DXS-500-24 DXS-500-36 DXS-500-48 DXS-500-60 DXS-500-80 Output Voltage 24V 36V 48V 60V 80V Rated Current 20A 13.8A 10A 8.3A 6.25A Current range 0~20A 0~13.
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
DXS-500-24 DXS-500-12 DXS-500-36 DXS-500-48
Output Type:
Single
Input Voltage:
100~120VAC/ 200-240VAC
Output Voltage:
12v 24v 48v 36v ( or customized output voltage )
Output Frequency:
50-60HZ
Output Current:
0~20A
Output Power
500W
Efficiency:
82%

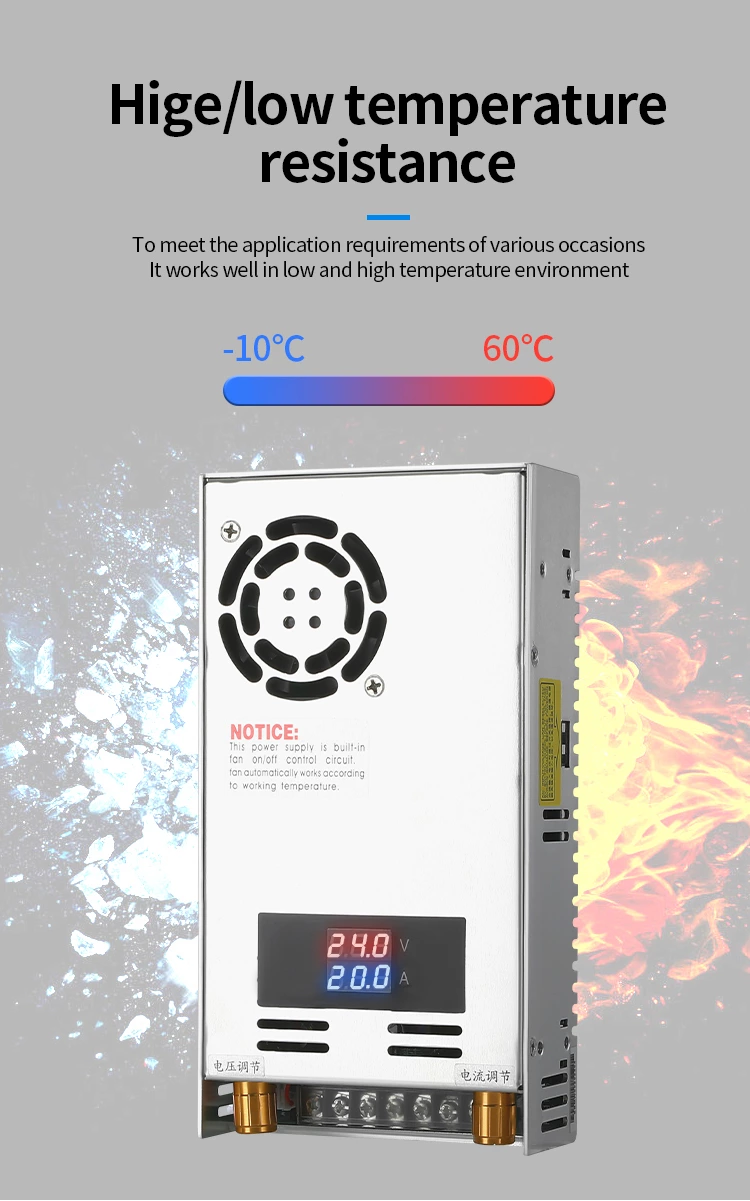

Workig Temperature:
-10℃~50℃
Materail:
Aluminum
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test

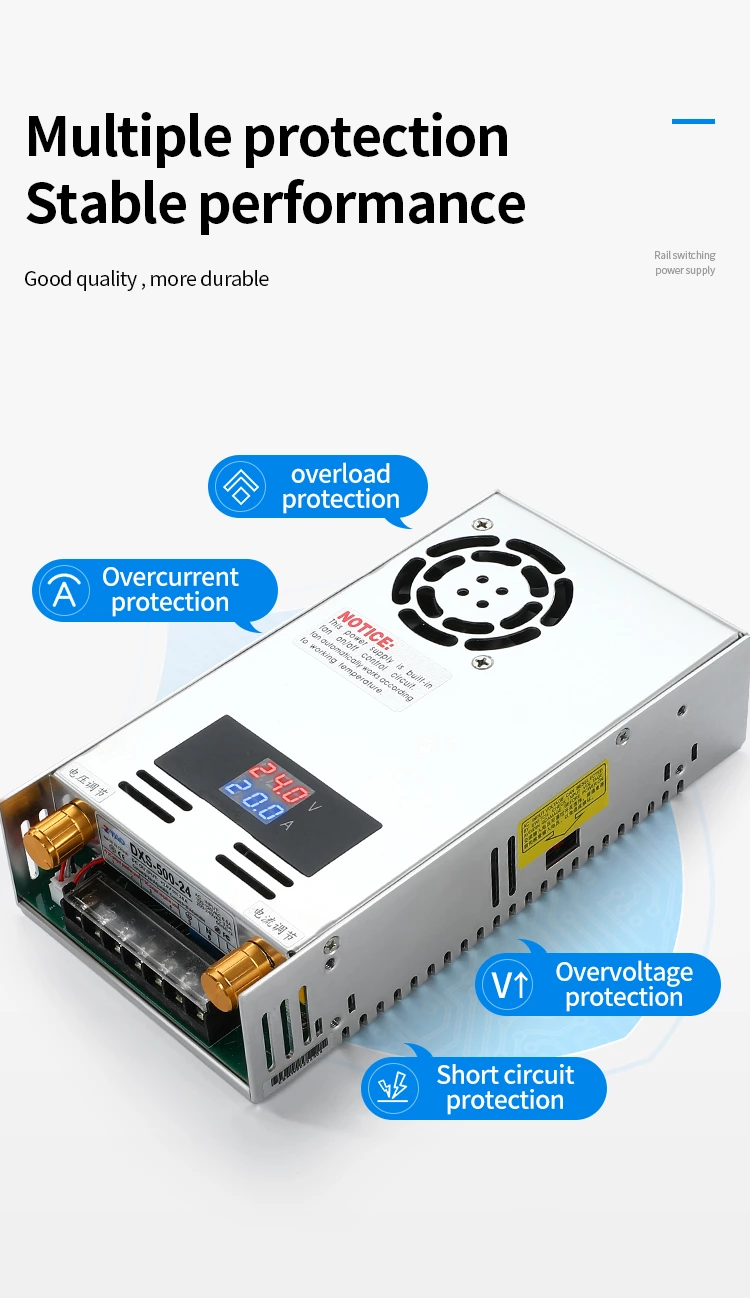

Protection:
Short Circuit Overtemp Overload Overvolt
Warranty
3 Years

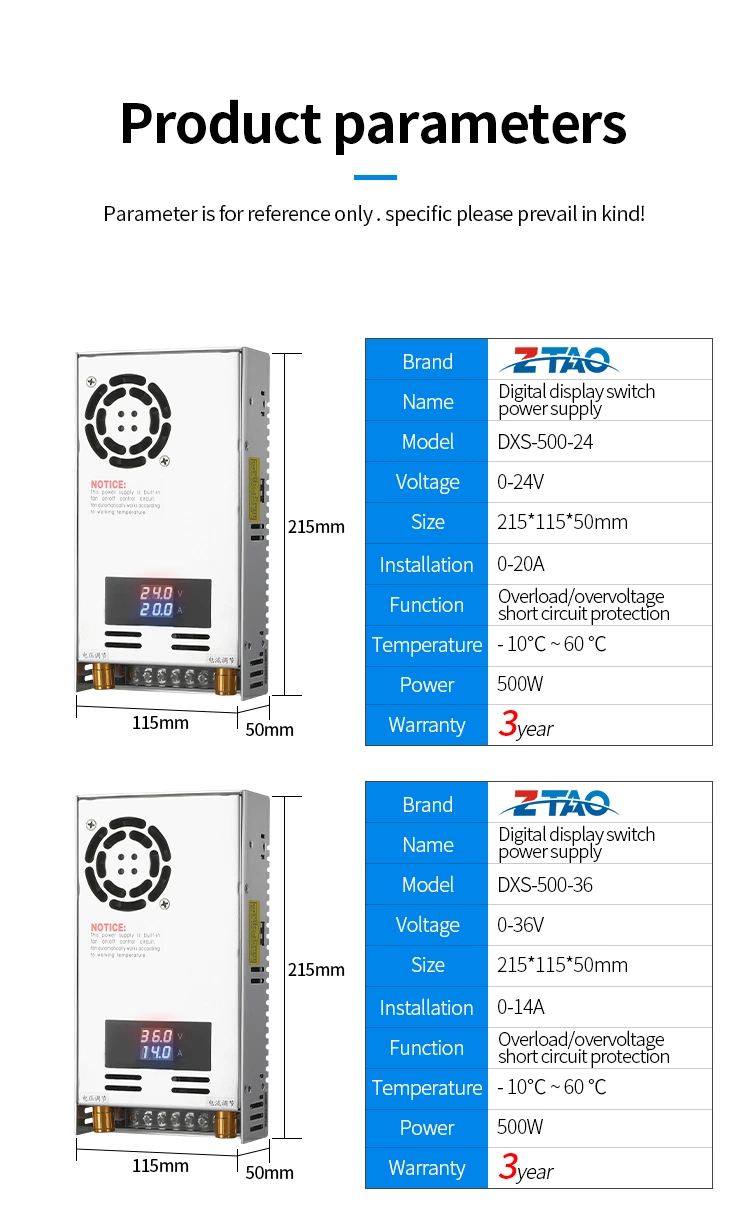

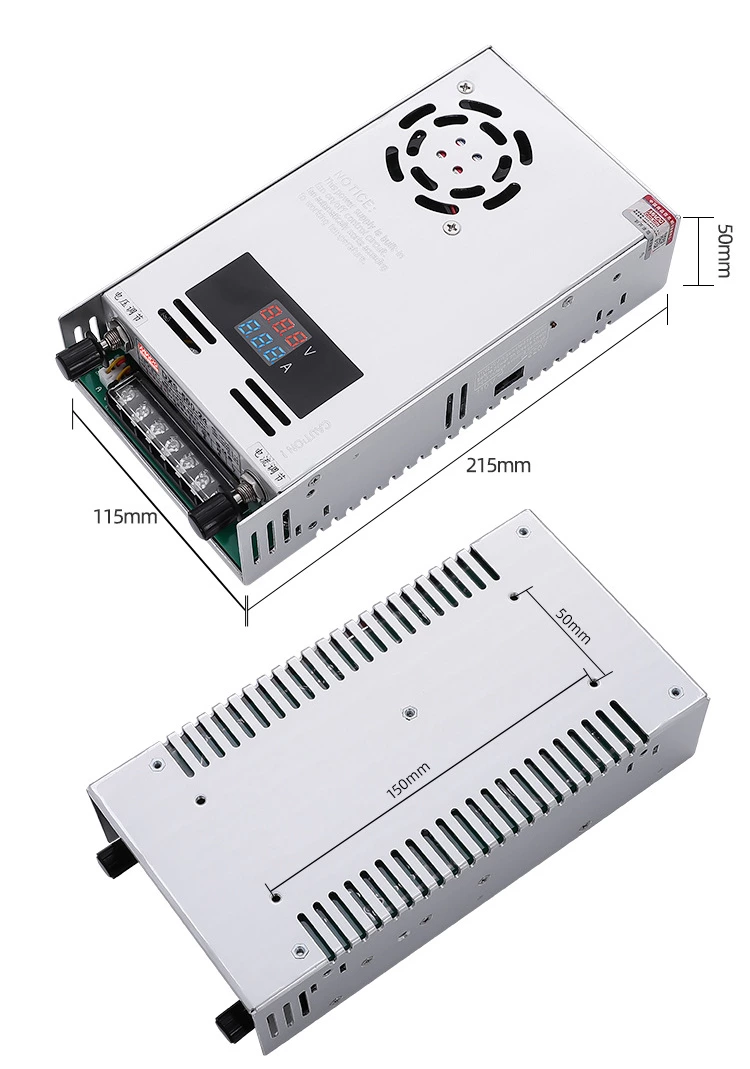

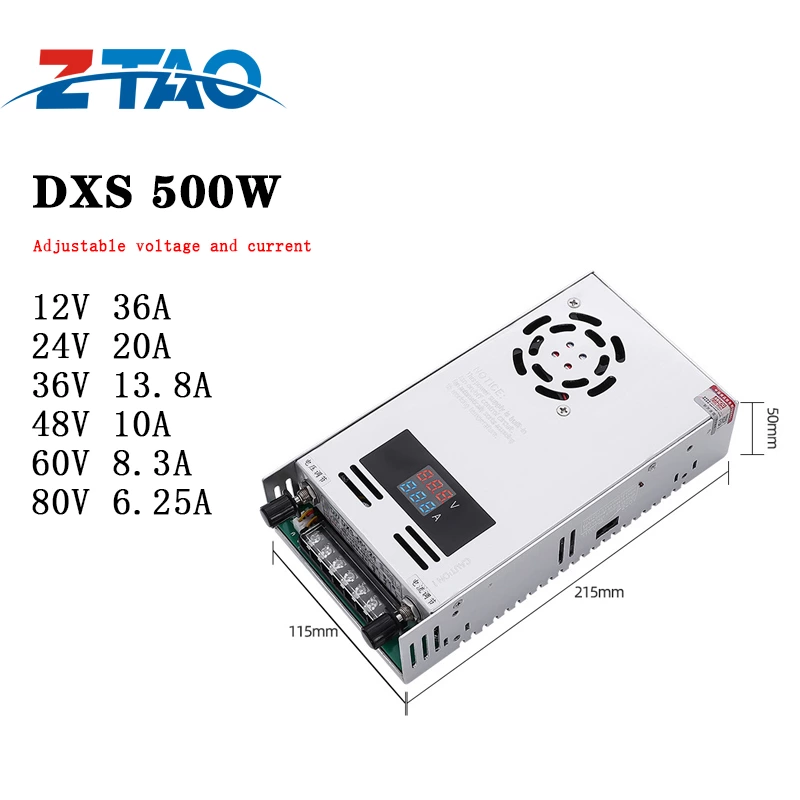

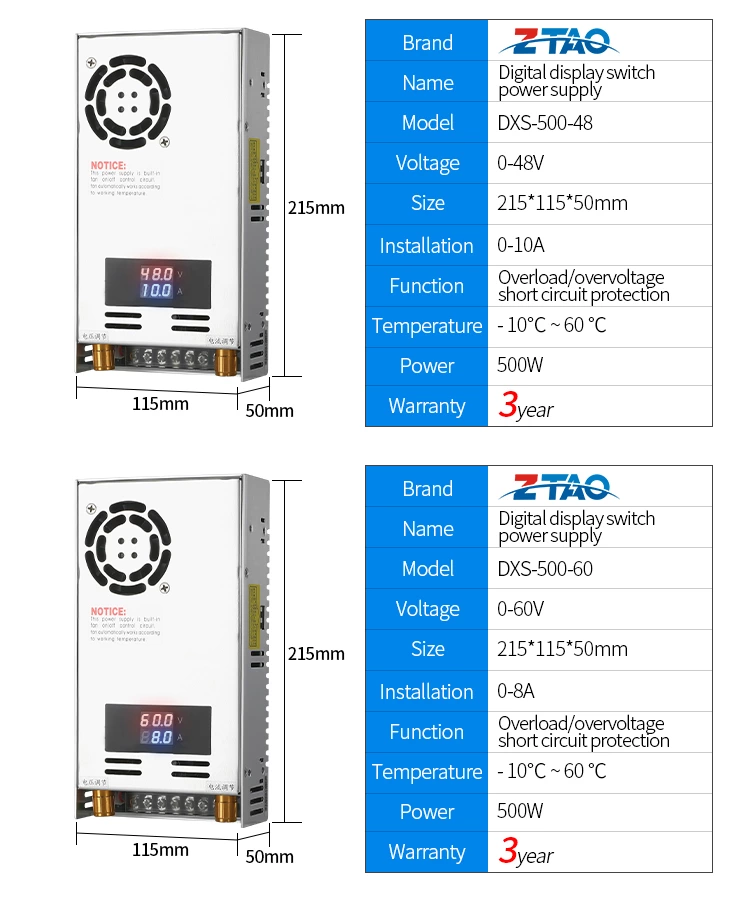

Size
215*115*50mm

DXS-500-24 24V Adjustable Voltage and current 12V 48V 500W Stabilization Digital Dc Power SupplyDXS-500-24 24V Adjustable Voltage and current 12V 48V 500W Stabilization Digital Dc Power SupplyDXS-500-24 24V Adjustable Voltage and current 12V 48V 500W Stabilization Digital Dc Power Supply

MODEL  DXS-500-24  DXS-500-36  DXS-500-48  DXS-500-60  DXS-500-80
Output Voltage 24V 36V 48V 60V 80V
Rated Current 20A 13.8A 10A 8.3A 6.25A
Current range 0~20A 0~13.8A 0~10A 0~8.3A 0~6.25A
Rated power 500W 500W 500W 500W 500W
Ripple&noise 100mVp-P 120mVp-p 150mVp-p 150mVp-p 200mVp-p
Efficiency 82% 84% 84% 86% 86%
