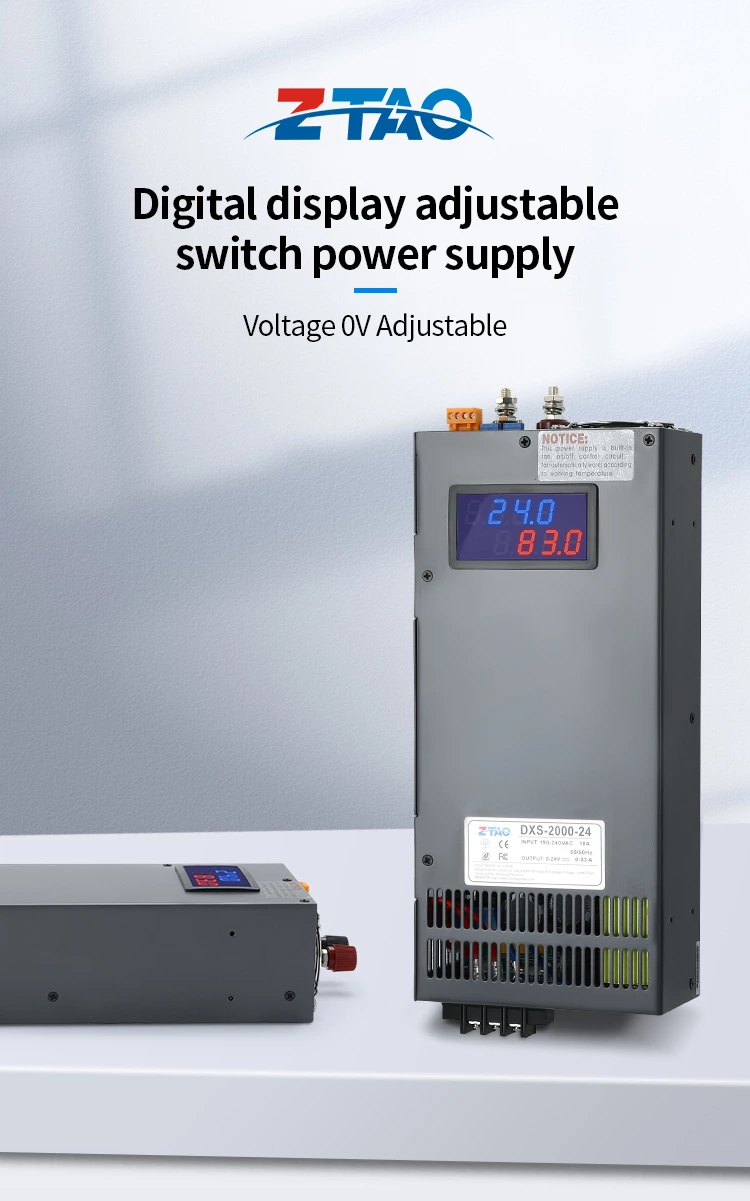

DXS 2000W digital display switching power supply Adjustable voltage and Current 0-24V 36V 48V 60v SMPS 24v 83A 48V 41.6a

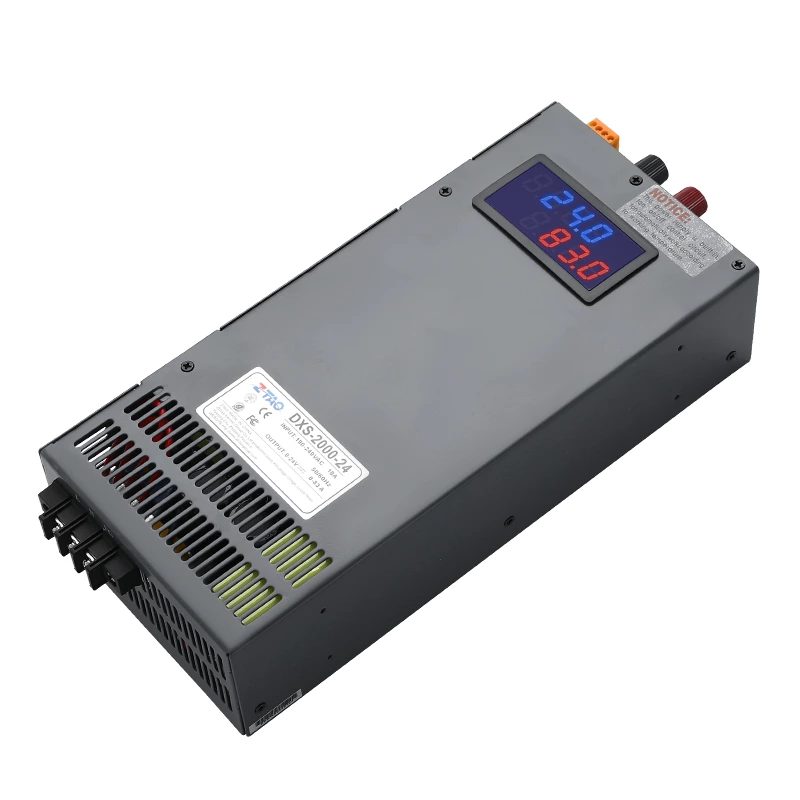

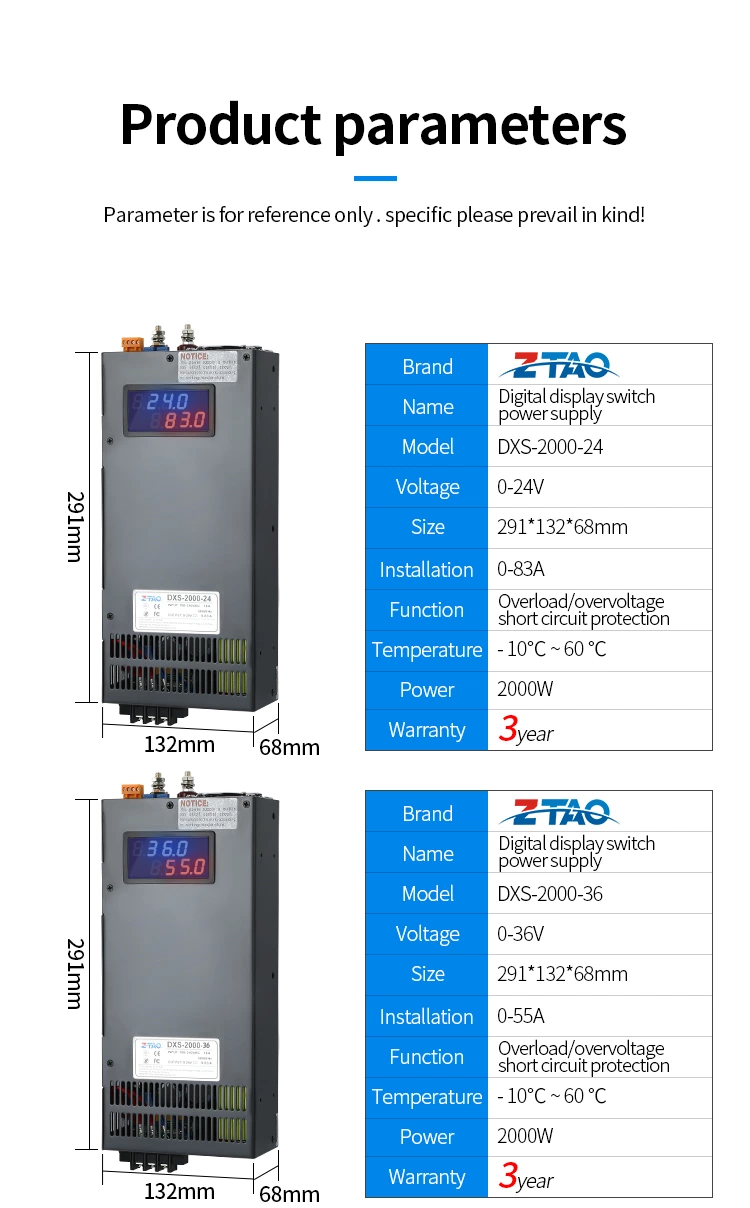

DXS-2000-24 Output voltage and current 24V 83.3A
DXS-2000-12 Output voltage and current 12V 166.6A
DXS-2000-36 Output voltage and current 36V 55.5A

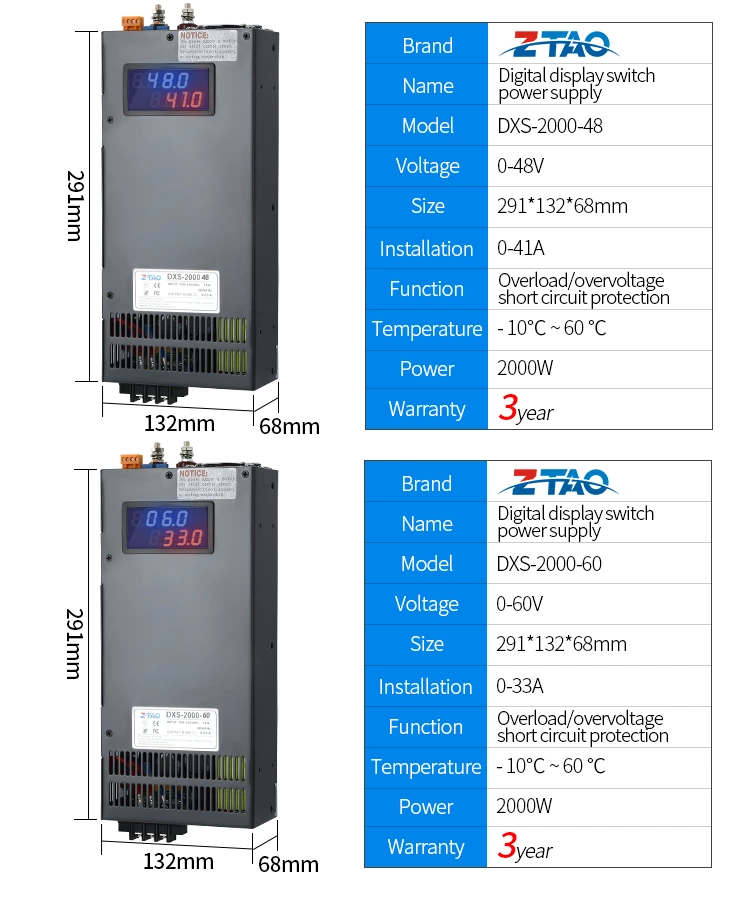

DXS-2000-48 Output voltage and current 48V 41.6A
DXS-2000-60 Output voltage and current 60V 33.3A
- Place of Origin;
- Yueqing,Wenzhou city, Zhejiang province ,China
- Brand Name:
- ZTAO
- Model Number:
- DXS-2000-12 DXS-2000-24 DXS-2000-36 DXS-2000-48 DXS-2000-60
- Output Type:
- Single
- Input Voltage:
- 190~240VAC
- Output Voltage:
- 24V/12V/48V/36V/60V Or customzied
- Output Frequency:
- 50~60Hz
- Output Current:
- 12v IS 166.6A Different voltage and different current
- Output Power
- 2000W
- Efficiency:
- 86%

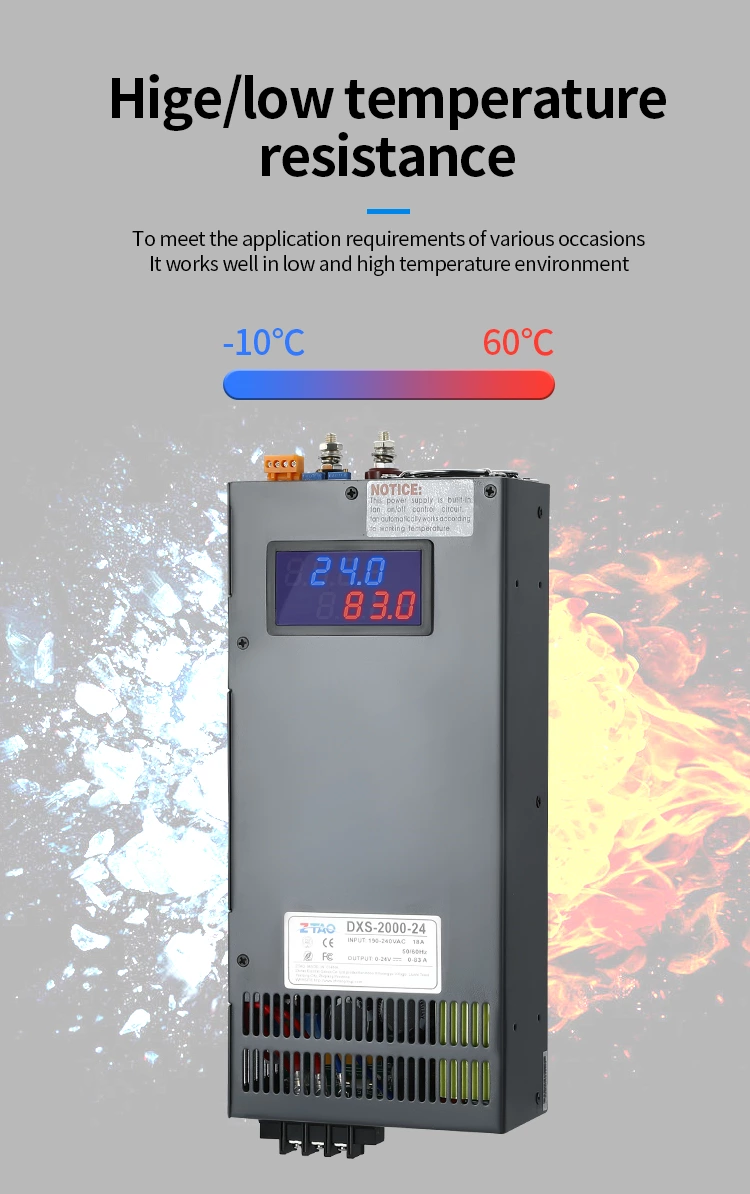

- Workig Temperature:
- -10℃~+60℃
- Certification:
- FCC CE ROHS ISO9001
- Test:
- 100% Full Load Burn-in Test

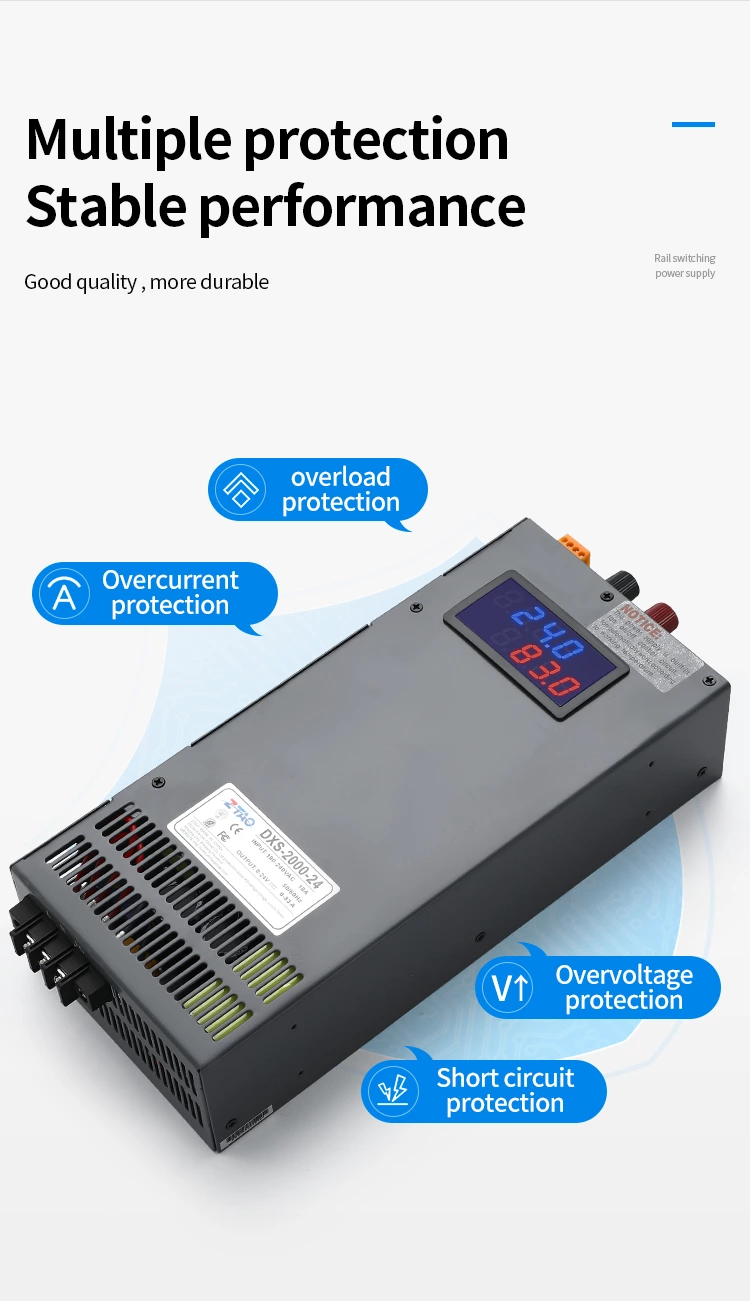

- Protection:
- Short Circuit/ Overtemp/ Overload /Overvolt
- Warranty
- 3 years
- Size
- 291*131*68mm
